Creating Test

​

What is a ‘Test’?

You can think of a ‘Test’ in AutoFlow Studio as a block of your test case. A Test is a recording of a user flow to undertake a certain activity on your application. It has a specific device profile.

A Test contains a set of test steps that are executed whenever a test run occurs.

​

How to Create a Test?

​

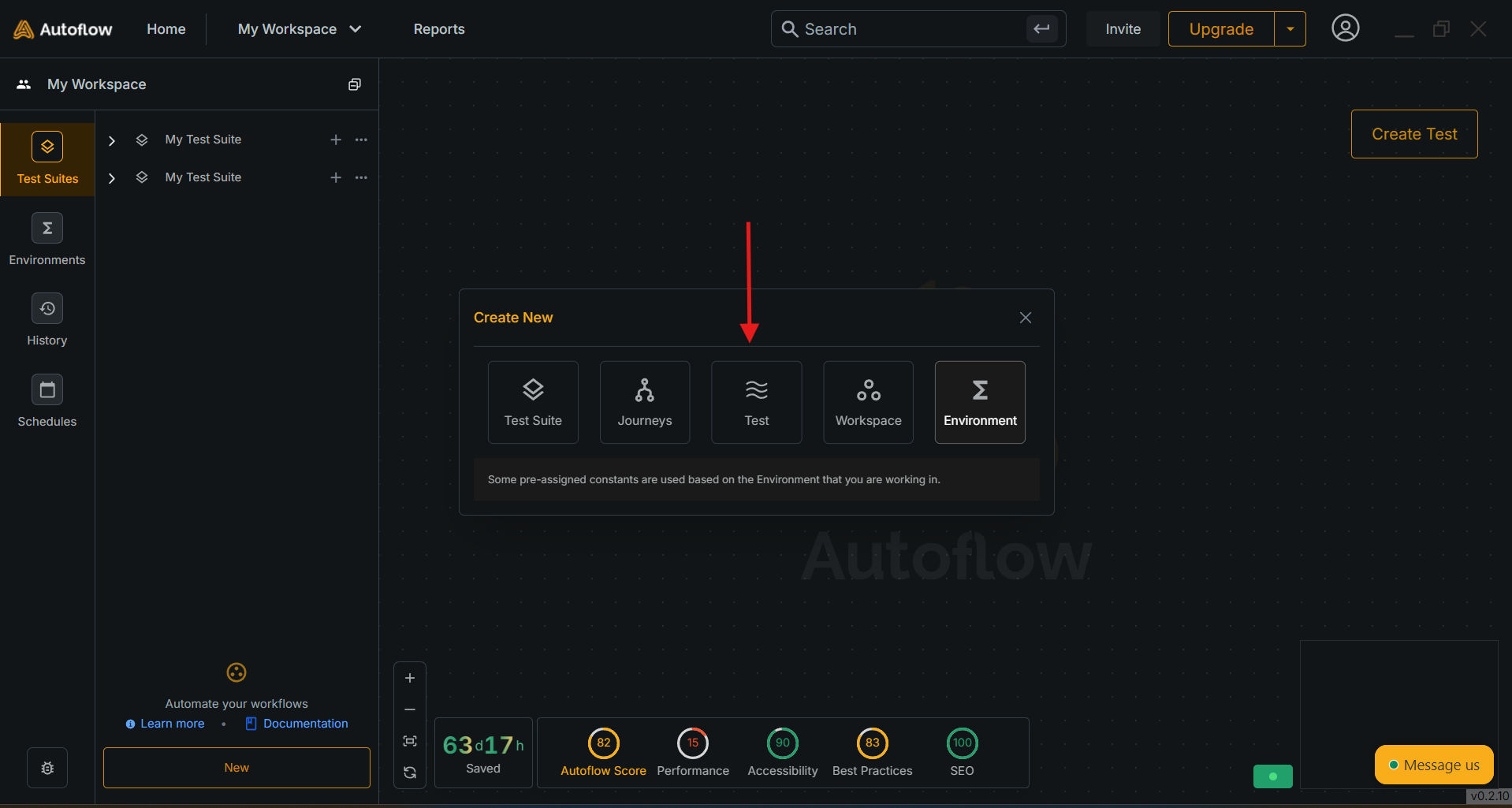

1. Click on ‘New’ button

1. Click on the ‘New’ button at the bottom left of sidebar.

​

2. Select ‘Test’ icon

​

3. Choose ‘Test Suite’

Choose whether to integrate your test into an existing test suite or create a new test suite and include it within.

​

4. Select Device Profile, Choose the environment and enter the URL

1. Choose your Test Suite:
2. Choose your environment:
3. Select your device profile:
   • Desktop
   • Mobile
   • Tablet
4. Enter the URL of your application

​

5. Enter the Intent of your test

Write the intent of your test or select one of our AI generated suggestions.

​

6. Click Submit

Click on ‘Submit’.

​

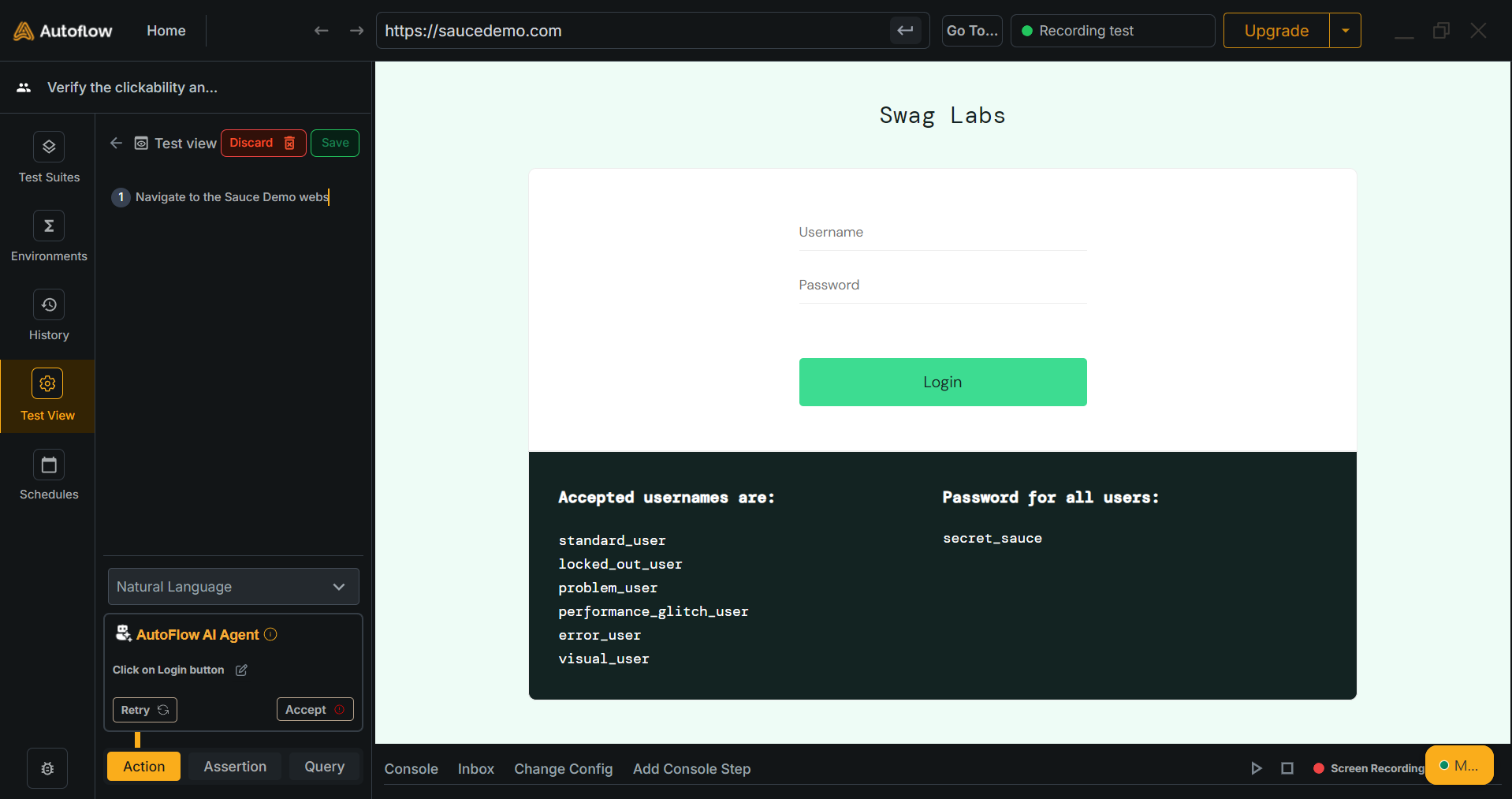

7. AutoFlow Recorder starts

Now the AutoFlow test recorder will open up.

​

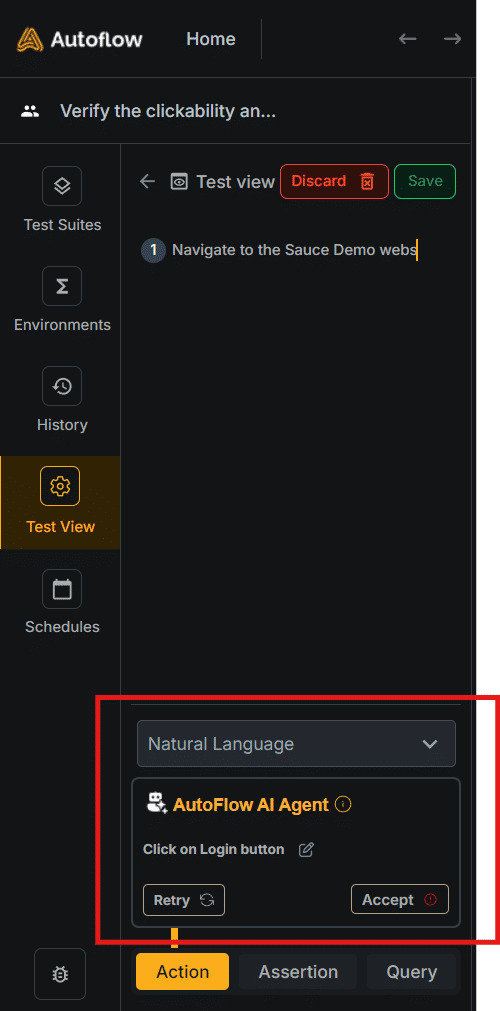

8. Record the steps

Now start recording the steps. The recorder starts with ‘Action Mode’ as default. Every action you do on the screen will be recorded as a step.

​

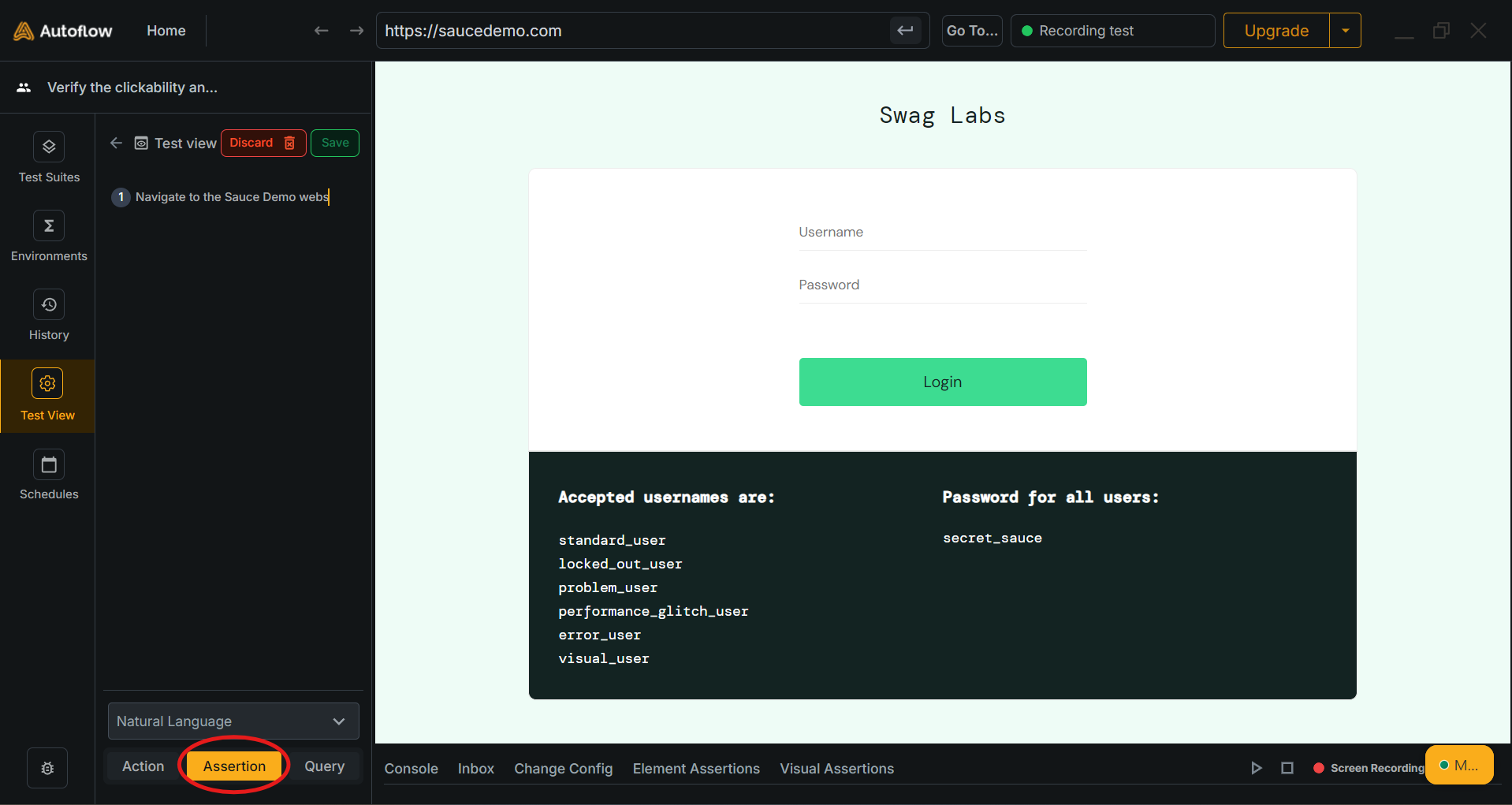

9. Switch to Assertion mode

Once you’re done with the actions. You can switch to assertion mode at the bottom left.

​

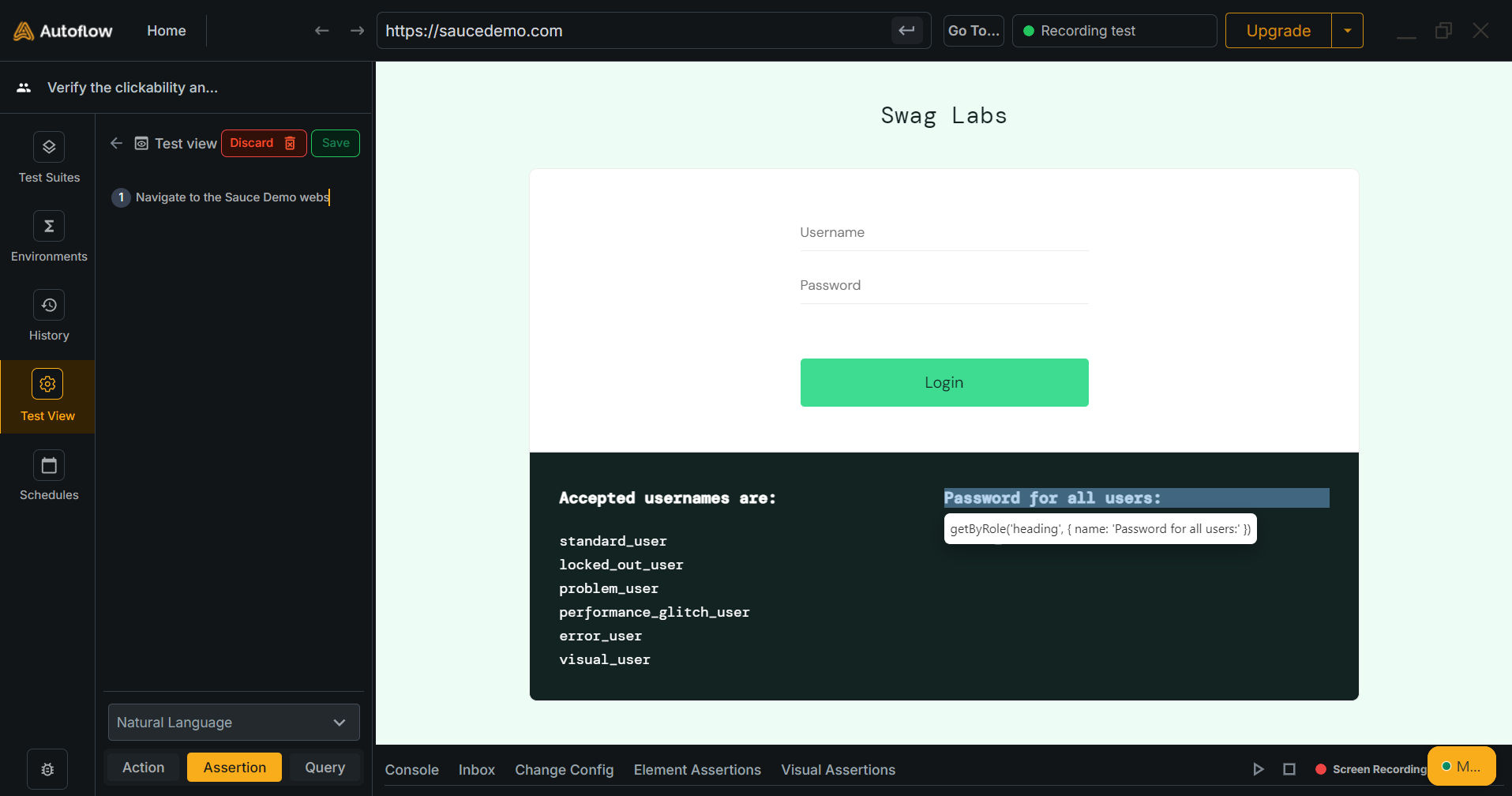

10. Add an assertion

Now hover over the element you want to assert. Eg. validate a certain element is visible on the screen.

​

11. Select the assertion type

Select ‘Assert the element is visible’ and click submit.

​

12. Save the test

Click on ‘Save’ once you’re done recording the test.
